CA & CO Chapter 20 practice problem

20.2

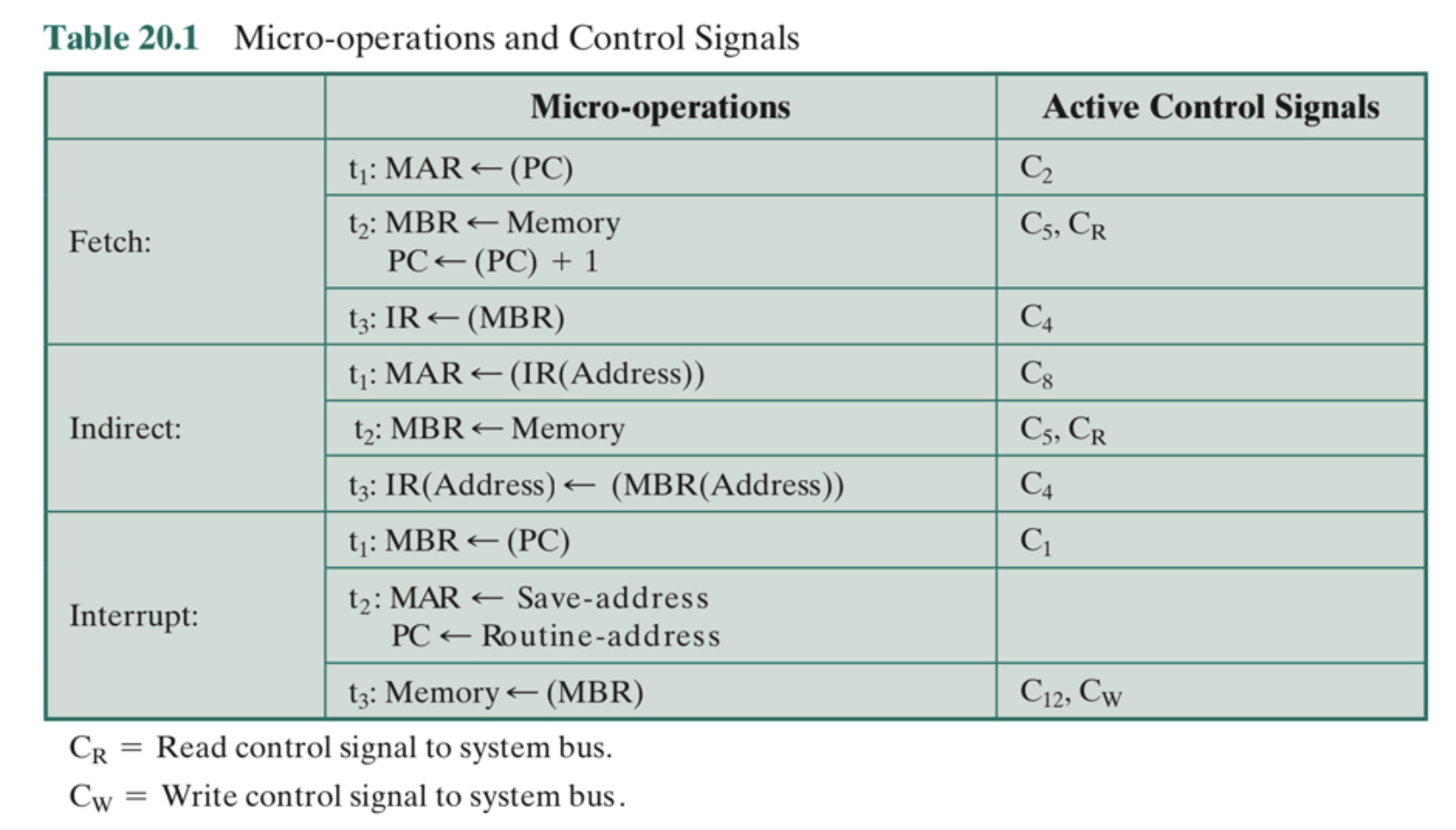

Show the micro-operations and control signals in the same fashion as Table 20.1 for the processor in figure 20.5 for the following instructions:

• Load Accumulator
  t1: MAR <- (IR(address)) C8
  t2: MBR <- Memory C5, CR
  t3: AC <- (MBR) C10
• Store Accumulator
  t1: MAR <- (IR(address)) C8
  t2: MBR <- AC C11
  t3: memory <- MBR C12,Cw
• Add to Accumulator
  t1: MAR <- (IR(address)) C8
  t2: MBR <- Memory C5, CR
  t3: AC <- AC + MBR C6, C7, C9, Call
• AND to Accumulator
  t1: MAR <-(IR(address)) C8
  t2: MBR <- Memory C5, CR
  t3: AC <- (AC) AND (MBR) Call, C6, C7, C9
• Jump
  t1: PC <- IR(address) C3
• Jump if AC = 0
  Test AC and active C3 if AC = 0
• Complement Accumulator
  t1: AC <- (A̅C̅) CAll,C6,C7,C9

20.3

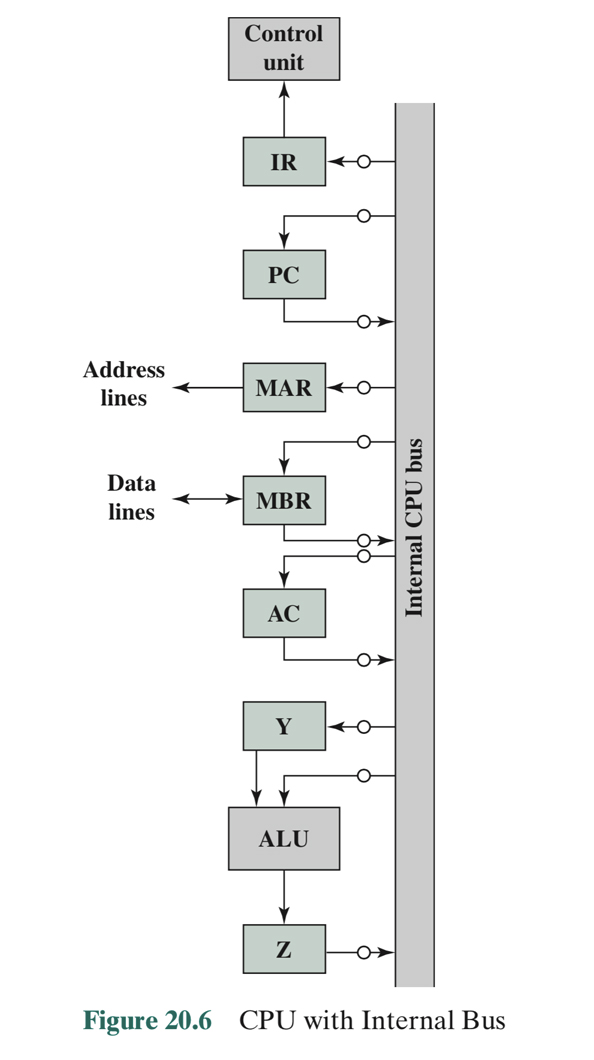

Assume that propagation delay along the bus and through the ALU of Figure 20.6 are 20 and 100ns, respectively. The time required for a register to copy data from the bus in 10ns. What is the time that must be allowed for

• data from one register to another?
  propagation time of bus + copy time = 20ns + 10ns = 30ns
• the program counter
  Z <- PC+1 : propagation time of bus + propagation time for ALU + copy time = 20ns + 10ns + 100ns = 130ns
  PC <- Z : propagation time of bus + copy time = 30ns
  total 160ns

20.4

Write the sequence of micro-operations required for the bus structure of Figure 20.6 to add a number to the AC when the number is

• immediate operand
  t1: Y <- (IR(address))
  t2: Z <- (AC) + (Y)
  t3: AC <- (Z)
• direct-address operand
  t1: MAR <- (IR(address))
  t2: MBR <- (Memory)
  t3: Y <- (MBR)
  t4: Z <- (AC) + (Y)
  t5: AC <- (Z)
• indirect-address operand
  t1: MAR <- (IR(address))
  t2: MBR <- (Memory)
  t3: MAR <- (MBR)
  t4: MBR <- Memory
  t5: Y <- (MBR)
  t6: Z <- (AC) + (Y)
  t7: AC <- (Z)
